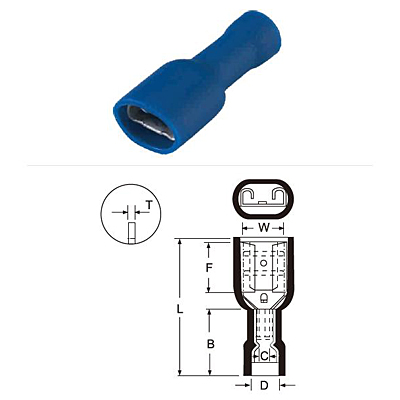

PVC母全绝缘端头
VINYL FULLY INSULATED FEMALE DISCONNECTORS
Material
lnsulation:vinyl
Terminal body:Brass
Plating:Tin
WIRE
RANGE |
ITEM NO. |
NEMA TAB |
DIMENSION mm(inch) |
COLOR |
Q’TY
BOX |
mm2
(A.W.G.) |
Thickness × Width
mm inch |
W |
F |
L |
B |
D |
d1 |
T |
|
0.5-1.5
(22-16) |
FDFV1-110(5) |
0.5×2.8 |
.020×.110 |
3.2(.126) |
6.5(.256) |
19.0(.748) |
10.5(.413) |
3.8(.150) |
1.7（.067） |
0.3(.012) |
Red |
1000 |
| FDFV1-110(8) |
0.8×2.8 |
.032×.110 |
| FDFV1-187(5) |
0.5×4.75 |
.020×.187 |
5.0(.197) |
6.4(.252) |
20.5(.807) |
0.35(.014) |
| FDFV1-187(8) |
0.8×4.75 |
.032×.187 |
| FDFV1-205(5) |
0.5×5.2 |
.020×.205 |
5.7(.224) |
5.8(.228) |
20.2(.795) |
| FDFV1-205(8) |
0.8×5.2 |
.032×.205 |
| FDFV1-250 |
0.8×6.35 |
.032×.250 |
6.6(.260) |
7.5(.295) |
21.8(.858) |
0.4(.016) |
|
1.5-2.5
(16-14) |
FDFV2-110(5) |
0.5×2.8 |
.020×.110 |
3.2(.126) |
6.5(.256) |
19.0(.748) |
10.5(.413) |
4.7(.185) |
2.3
2.3（.091）
|
0.3(.012) |
Blue |
1000 |
| FDFV2-110(8) |
0.8×2.8 |
.032×.110 |
3.2(.126) |
| FDFV2-187(5) |
0.5×4.75 |
.020×.187 |
5.0(.197) |
6.4(.252) |
20.2(.795) |
0.35(.014) |
| FDFV2-187(8) |
0.8×4.75 |
.032×.187 |
5.0(.197) |
| FDFV2-250(5) |
0.5×5.2 |
.020×.205 |
5.7(.224) |
5.8(.228) |
20.2(.795) |
| FDFV2-250(8) |
0.8×5.2 |
.032×.205 |
| FDFV2-250 |
0.8×6.35 |
.032×.250 |
6.6(.260) |
7.5(.295) |
22.2(.874) |
0.4(.016) |
|
4-6
(12-10) |
FDFV5-250 |
0.8×6.35 |
.032×.250 |
6.6(.260) |
7.5(.295) |
24.2(.953) |
12.5(.492) |
6.2(.244) |
3.4（.134） |
0.4(.016) |
Yellow |
500 |
| FDFV5-375 |
1.2×9.4 |
.047×.375 |
10.0(.394) |
12.0(.472) |
30.5(1.201) |
0.5(.020) |
|
|
