VINYL INUSLATED DOUBLE CRIMP LOCKING SPADETERMINALS
Material
Insulation:Vinyl
Terminal Body: Copper
Metallic Sleeve: Copper
Plating: Tin

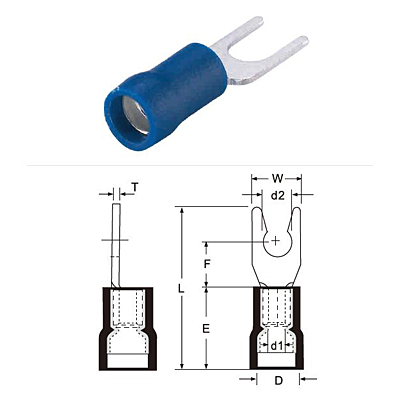

WIRE
RANGE |
ITEM NO. |
d2 |
DIMENSION mm(inch) |
COLOR |
Q’TY
BOX |
mm2
(A.W.G) |
mm(inch) |
USA |
W |
F |
L |
E |
D |
d1 |
T |
0.5-1.5
(22-16) |
LSVD1-3.7 |
3.7(.146) |
#6 |
6.4(.252) |
6.5(.256) |
21.5(.846) |
10.5(.413) |
4.2(.165) |
1.7(.067) |
0.75(.030) |
Red |
1000 |
| LSVDS1-4 |
4.3(.169) |
#8 |
7.2(.283) |
1000 |
| LSVDS1-4 |
4.3(.169) |
#8 |
8.1(.319) |
1000 |
| LSVDS1-5 |
5.3(.209) |
#10 |
8.1(.319) |
1000 |
| LSVDL1-5 |
5.3(.209) |
#10 |
9.5(.374) |
1000 |
1.5-2.5
(16-14) |
LSVD2-3.7 |
3.7(.146) |
#6 |
6.0(.236) |
6.5(.256) |
21.5(.846) |
10.5(.413) |
5.0(.197) |
2.3(.091) |
0.8(.031) |
Blue |
1000 |
| LSVDS2-4 |
4.3(.169) |
#8 |
7.2(.283) |
1000 |
| LSVDS2-4 |
4.3(.169) |
#8 |
8.1(.319) |
1000 |
| LSVDS2-5 |
5.3(.209) |
#10 |
8.1(.319) |
1000 |
| LSVDL2-5 |
5.3(.209) |
#10 |
9.3(.366) |
1000 |
4-6
(12-10) |
LSVD5-3.7 |
3.7(.146) |
#6 |
8.3(.327) |
7.0(.276) |
25.7(1.012) |
13.5(.531) |
6.8(.277) |
3.4(.134) |
1.0(.039) |
Yellow |
500 |
| LSVD5-4 |
4.3(.169) |
#8 |
8.3(.327) |
500 |
| LSVDS-5 |
5.3(.209) |
#10 |
9.0(.354) |
500 |
| LSVD5-6 |
6.4(.252) |
1/4" |
12.0(.472) |
12.0(.472) |
32.0(1.260) |
500 |
