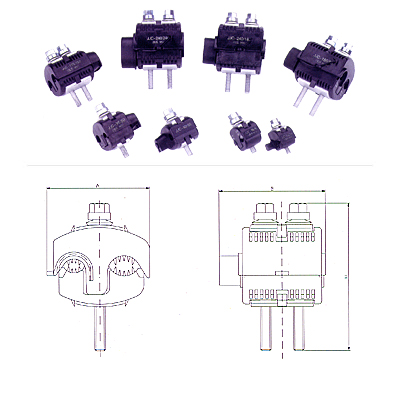

JJC PIERCING CONNECTOR(1kV)
Application
Application to branch connection and succession for 1KV insulated overhead distribution systems;
Application to branch connection for street lighting systems.
Technical Data
| Model |
Applicable cable
(mm2) |
Dimensions
(mm2) |
Nominal Current
(A) |
Bolt NO.(piece)
|
Main application |
Note |
| Mian Line |
Branch line |
A |
B |
H |
| JJC-150/150 |
35~150 |
35~150 |
65 |
53 |
87 |
342 |
2 |
The connection of maiu circuitries,The branch connection for main circuitries to house circuitries,electric appliances or street light |
Low-voltage double-insulation cable,available with the specific ations of high voltage piecing connector |
| JJC-120/50 |
25~120 |
10~50 |
56 |
51 |
78 |
162 |
1 |
| JJC-95/50 |
25~95 |
6~50 |
54 |
51 |
78 |
162 |
1 |
| JJC-50/35 |
16~50 |
4~35 |
45 |
51 |
68 |
132 |
1 |
| JJC-95/10 |
25~95 |
1.5~10 |
37 |
25 |
58 |
75 |
1 |
| JJC-50/10 |
10~50 |
1.5~10 |
32 |
32 |
49 |
75 |
1 |
| JJC-240/240 |
95~240 |
95~240 |
90 |
85.5 |
113 |
476 |
2 |
| JJC-240/185 |
95~240 |
70~185 |
85.5 |
83 |
113 |
399 |
2 |
| JJC-240/50 |
150~240 |
16~50 |
76 |
83 |
113 |
162 |
2 |
| JJC-185/95 |
70~185 |
16~95 |
78.5 |
80.5 |
113 |
257 |
2 |
|
|
