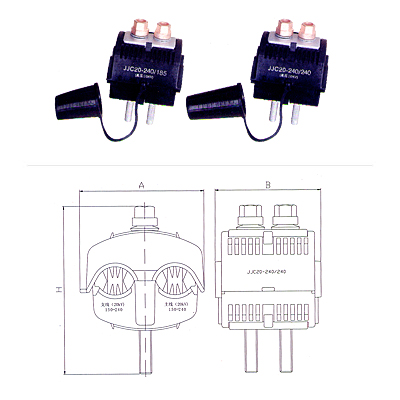

JJC 20 PIERCING CONNECTOR(20kV)
Application
Application to branch connection and succession for 20KV insulated overhead distribution systems.
Technical Data
| Model |
Applicable cable(mm2) |
Dimensions(mm2) |
Nominal Current(A) |
Bolt NO.(piece)
|
Main application |
| Mian Line |
Branch line |
A |
B |
H |
| JJC20-240/185 |
95-240 |
50~185 |
100 |
91 |
141 |
399 |
2 |
The connection of maiu circuitries,The connection of main circuitry and branch circuitry |
| JJC20-240/240 |
150-240 |
150~240 |
100 |
91 |
141 |
476 |
2 |
|
|
