Application
Application to the branch connection for main cable with 3-core or 4-core insulated cable for 1KV(or<1KV) overhead line.
Application to insulated cable with a section from 90°~120°.
Technical Data
| Model |
Applicable cable(mm2) |

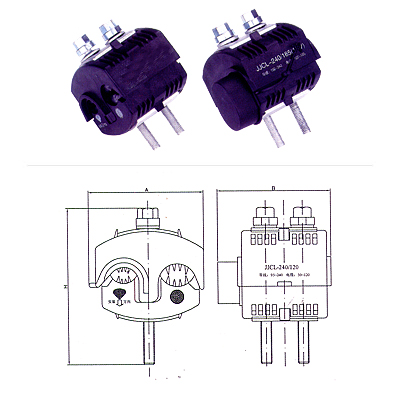

Dimensions(mm2) |
Nominal Current(A) |
Bolt NO.(piece)
|
Main application |
| Mian Line |
cable |
A |
B |
H |
| JJCL-240/185 |
150~240 |
120~185 |
90 |
85.5 |
113 |
399 |
2 |
The branch connection of mainline and branch line |
| JJCL-240/120 |
95~240 |
50~120 |
85.5 |
83 |
113 |
299 |
2 |
