JCB TYPE PIERCING PARALLEL CLAMP (1 kV)
Application
Application to branch connection for 1KV(<1KV) bare conductor with insulated conductor or bunched cable.

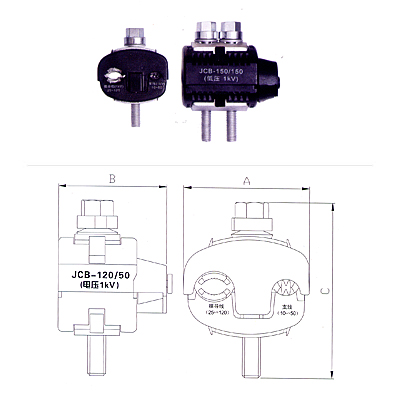

Technical Data
| Model |
Applicable cable(mm2) |
Dimensions(mm2) |
Nominal Current(A) |
Bolt NO.(piece)
|
Main application |
| Bare conduccyor |
Branch conductor |
A |
B |
H |
| JCB-150/150 |
50~150 |
35~150 |
59 |
68 |
88 |
342 |
2 |
Branch connection for bare conductor with insulated conductor or bunched cable.
|
| JCB-120/50 |
25~120 |
10~50 |
56 |
51 |
78 |
162 |
1 |
|
|
