JJCF 10 PIERCING GROUNDING PROTECTION (10 kV)
Application
Application to grounding protection during electric power construction for 10KV or below insulated overhead distribution systems.
Technical Data
| Model |
Applicable cable(KV） |
Applicable cable(mm2) |
Dimensions(mm2) |
Nominal Current(A) |
Bolt NO.(piece)
|
Main application |

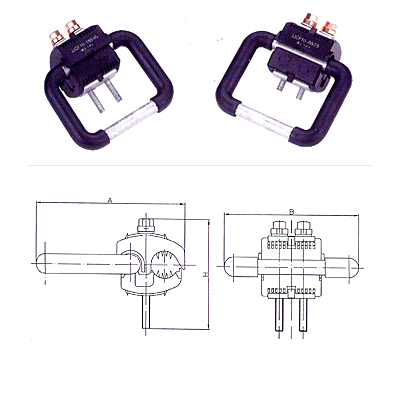

| A |
B |
H |
| JJC10-300/150 |
10 |
150~300 |
167.5 |
140 |
118 |
600 |
2 |
the grounded safety protection of main circuitry when electric power construction. |
| JJC10-240/150 |
10 |
150~240 |
160 |
140 |
113 |
476 |
2 |
| JJCF10-185/95 |
10 |
95~185 |
158 |
140 |
113 |
399 |
2 |
| JJCF10-95/25 |
10 |
25~95 |
148.5 |
140 |
98 |
257 |
2 |
|
|
