Application
1.Use for the connecting of the distrbution transformer wire and the below of the high-voltage fuse.
2.When the hige-voltage fuse break with the power,grounding stick mount to the below of the grounding ring,then the mount wire loose the electric.
Function and features
1.simple structure,easy install
2.high strength insulation,anti-aging
3.moment nut ensure the pressure pressure and reliability of piercing
Technical Data

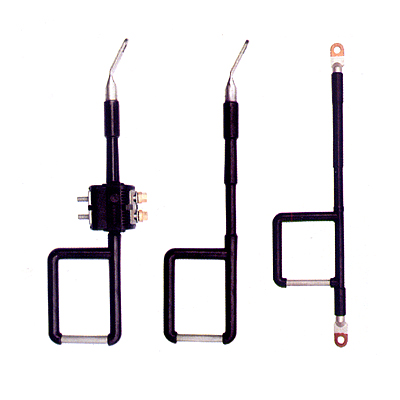

| Name |
Model |
Applicable voltage(KV) |
Applicable cable(mm2) |
| Piercing Type Transform Grounding Protection |
JJCF10-B1 |
10 |
25~95 |
| Fuse Grounding Protection |
JJCF10-B2 |
10 |
25~95 |
| Transform Grounding Protection |
JJCF10-B3 |
10 |
25~70 |
Fitting Instruction
1.piercing type transform grounding protection JJCF10-B1 fitting instruciton
a)The copper connector of the transform grounding protection, correctly connected at the below of the hige-voltage fuse.
b)Distribution transformer high-voltage wire get through the main wire of the piercing connector,use hand to fix the moment nut.
c)Use special spanner to fix tight of the moment nut, until the moment nut was broken.
d)Put the below of the high-voltage connect to the tranformer
2.fuse grounding protection JJCF10-B2 fitting instruciton
a)the copper connector of the fuse grounding protection, correctly connected at the below of the 10KV high-voltage fuse.
b)make sure the grounding protection si vertical directm , fix tight of the nut
3.transform grounding protection JJCF10-B3 fitting instruction
a)the copper connector of the fuse grounding protection, correctly connected at the below of the 10KV high-voltage fuse.
b)put the distribution transformer wire directly connect with the below terminal of the grounding protection
