Material
Insulation:PC Terminal Body:Copper Plating:Tin
WIRE
RANGE |
ITEM NO. |
STUD SIZE |

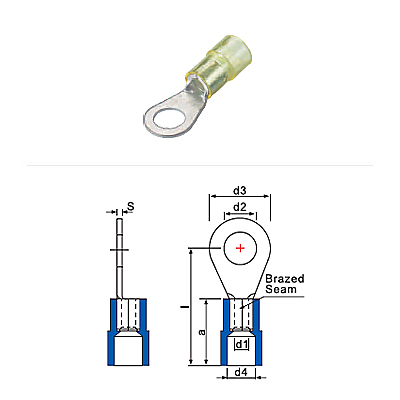

DIMENSION mm |
COLOR |
Q’ TY
BOX |
mm2
(A.W.G) |
Metric |
d2 |
d3 |
l |
a |
c |
d1 |
s |
| 0.2~0.5 |
DRNIB2-0.5 |
2 |
2.2 |
5.0 |
14.0 |
1.0 |
2.3 |
8.0 |
0.5 |
Yellow |
1000 |
| DRNIB2.5-0.5 |
2.5 |
2.7 |
| DRNIB3-0.5 |
3 |
3.2 |
| DRNIB3.5-0.5 |
3.5 |
3.7 |
6.0 |
16.0 |
| DRNIB4-0.5 |
4 |
4.3 |
6.5 |
| DRNIB5-0.5 |
5 |
5.3 |
8.0 |
| 0.5~1.5 |
DRNIB2-1 |
2 |
2.2 |
6.0 |
17.0 |
1.6 |
4.0 |
11.0 |
0.8 |
Red |
1000 |
| DRNIB2.5-1 |
2.5 |
2.7 |
| DRNIB3-1 |
3 |
3.2 |
| DRNIB3.5-1 |
3.5 |
3.7 |
| DRNIBS4-1 |
4 |
4.3 |
7.0 |
17.5 |
| DRNIB4-1 |
4 |
4.3 |
8.0 |
18.0 |
| DRNIBS5-1 |
5 |
5.3 |
8.0 |
18.5 |
| DRNIB5-1 |
5 |
5.3 |
10.0 |
19.0 |
| DRNIB6-1 |
6 |
6.5 |
10.0 |
| DRNIBL6-1 |
6 |
6.5 |
11.0 |
21.0 |
| DRNIB8-1 |
8 |
8.4 |
14.0 |
23.0 |
| DRNIB10-1 |
10 |
10.5 |
14.0 |
| DRNIBL10-1 |
10 |
10.5 |
18.0 |
25.0 |
| 1.5~2.5 |
DRNIB3-2.5 |
3 |
3.2 |
6.0 |
17.0 |
2.3 |
4.5 |
11.0 |
0.8 |
Blue |
1000 |
| DRNIB3.5-2.5 |
3.5 |
3.7 |
| DRNIBS4-2.5 |
4 |
4.3 |
6.8 |
17.6 |
| DRNIB4-2.5 |
4 |
4.3 |
8.0 |
18.0 |
| DRNIBS5-2.5 |
5 |
5.3 |
19.5 |
| DRNIB5-25 |
5 |
5.3 |
10.0 |
20.0 |
| DRNIB6-2.5 |
6 |
6.5 |
11.0 |
22.0 |
| DRNIB8-2.5 |
8 |
8.4 |
14.0 |
23.0 |
| DRNIB10-2.5 |
10 |
10.5 |
15.0 |
| DRNIBL10-2.5 |
10 |
10.5 |
18.0 |
24.5 |
| DRNIB12-2.5 |
12 |
13.0 |
26.0 |
Material
Insulation:PC Terminal Body:Copper Plating:Tin
WIRE
RANGE |
ITEM NO. |
STUD SIZE |
DIMENSION mm |
COLOR |
Q’ TY
BOX |
mm2
(A.W.G) |
Metric |
d2 |
d3 |
l |
a |
c |
d1 |
s |
| 2.5~6 |
DRNIB4-6 |
4 |
4.3 |
8.0 |
21.0 |
3.6 |
6.4 |
13.0 |
1.0 |
Yellow |
500 |
| DRNIB5-6 |
5 |
5.3 |
10.0 |
22.0 |
| DRNIB6-6 |
6 |
6.5 |
11.0 |
23.0 |
| DRNIB8-6 |
8 |
8.4 |
14.0 |
26.0 |
| DRNIB10-6 |
10 |
10.5 |
18.0 |
28.0 |
| DRNIB12-6 |
12 |
13.0 |
| 10 |
DRNIB5-10 |
5 |
5.3 |
10.0 |
24.5 |
4.5 |
8.0 |
16.5 |
1.1 |
Red |
500 |
| DRNIB6-10 |
6 |
6.5 |
11.0 |
25.5 |
| DRNIB8-10 |
8 |
8.4 |
14.0 |
28.5 |
| DRNIB10-10 |
10 |
10.5 |
18.0 |
29.5 |
| DRNIBL12-10 |
12 |
13.0 |
22.0 |
31.5 |
| 16 |
DRNIB5-16 |
5 |
5.3 |
11.0 |
31.5 |
5.8 |
11.0 |
21.5 |
1.2 |
Blue |
250 |
| DRNIB6-16 |
6 |
6.5 |
| DRNIB8-16 |
8 |
8.4 |
14.0 |
33.5 |
| DRNIB10-16 |
10 |
10.5 |
18.0 |
35.5 |
| DRNIB12-16 |
12 |
13.0 |
22.0 |
37.5 |
|
|
