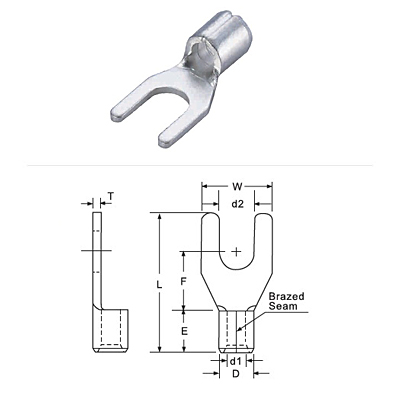

叉形裸端头
NON-INSULATED SPADE TERMINALS
Material
Terminal Body: Copper
Plating: Tin
WIRE
RANGE |
ITEM NO. |
d2 |
DIMENSIONmm(inch) |
Q`TY
BAG |
mm2
(A.W.G.) |
mm(inch) |
USA |
W |
F |
L |
E |
D |
d1 |
T |
|
0.5-1.5
（22-16） |
SNB1-3.2 |
3.2(.126) |
#4 |
5.7(.224) |
6.5(.256) |
16.0(.630) |
4.8(.189) |
3.4(.134) |
1.7(.067) |
0.75(.030) |
1000 |
| SNBS1-3.7 |
3.7(.146) |
#6 |
1000 |
| SNBL1-3.7 |
3.7(.146) |
#6 |
6.4(.252) |
1000 |
| SNBLL1-3.7 |
3.7(.146) |
#6 |
7.2(.283) |
1000 |
| SNBS1-4 |
4.3(.169) |
#8 |
6.4(.252) |
1000 |
| SNBM1-4 |
4.3(.169) |
#8 |
7.2(.283)
|
6.5(.256) |
16.0(.630) |
1000 |
| SNBL1-4 |
4.3(.169) |
#8 |
8.1(.319) |
1000 |
| SNBS1-5 |
5.3(.209) |
#10 |
1000 |
| SNBL1-5 |
5.3(.209 |
#10 |
9.5(.374) |
6.5(.256) |
16.0(.630) |
1000 |
| SNBS1-6 |
6.4(.252) |
1/4" |
1000 |
| SNBL1-6 |
6.4(.252) |
1/4" |
12.0(.472) |
11.0(.433) |
22.0(.866) |
1000 |
|
1.5-2.5
(16-14) |
SNB2-3.2 |
3.2(.126) |
#4 |
5.7(.224) |
6.5(.256) |
16.0(.630) |
4.8(.189) |
4.1(.161) |
2.3(.091) |
0.8(.031) |
1000 |
| SNBS2-3.7 |
3.7(.146) |
#6 |
1000 |
| SNBL2-3.7 |
3.7(.146) |
#6 |
6.0(.236) |
1000 |
| SNBLL2-3.7 |
3.7(.146) |
#6 |
7.2(.283) |
1000 |
| SNBS2-4 |
4.3(.169) |
#8 |
6.4(.252) |
1000 |
| SNBM2-4 |
4.3(.169) |
#8 |
7.2(.283) |
1000 |
| SNBL2-4 |
4.3(.169) |
#8 |
8.1(.319) |
6.5(.256) |
16.0(.630) |
1000 |
| SNBS2-5 |
5.3(.209) |
#10 |
1000 |
| SNBL2-5 |
5.3(.209) |
#10 |
9.3(.366) |
1000 |
| SNBS2-6 |
6.4(.252) |
1/4" |
1000 |
| SNBL2-6 |
6.4(.252) |
1/4" |
12.0(.472) |
1000 |
|
2.5-4
(14-12) |
SNB3-3.7 |
3.7(.146) |
#6 |
8.0(.315) |
7.0(.276) |
18.3(.720) |
6.0(.236) |
5.0(.199) |
3.0(.188) |
1.0(.039) |
1000 |
| SNB3-4 |
4.3(.169) |
#8 |
1000 |
| SNB3-5 |
5.3(.209) |
#10 |
1000 |
| SNB3-6 |
6.4(.252) |
1/4" |
12.0(.472) |
9.1(.358) |
21.5(.846) |
1000 |
|
4-6
(12-10) |
SNBS5-3.7 |
3.7(.146) |
#6 |
7.2(.283) |
7.5(.295) |
17.4(.685) |
6.0(.236) |
5.6(.220) |
3.4(.134) |
1.0(.039) |
1000 |
| SNB5-3.7 |
3.7(.146) |
#6 |
8.3(.327) |
7.0(.276) |
18.5(.728) |
6.0(.236) |
5.6(.220) |
3.4(.134) |
1.0(.039) |
1000 |
| SNBSS5-4 |
4.3(.169) |
#8 |
7.2(.283) |
7.5(.295) |
17.4(.685) |
6.0(.236) |
5.6(.220) |
3.4(.134) |
1.0(.039) |
1000 |
| SNBS5-4 |
4.3(.169) |
#8 |
8.3(.327) |
7.0(.276) |
18.5(.728) |
6.0(.236) |
5.6(.220) |
3.4(.134) |
1.0(.039) |

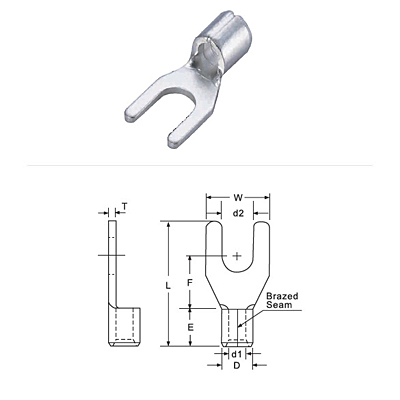

1000 | Spade non-insulated terminal
Material
Terminal Body: Copper
Plating: Tin
WIRE
RANGE |
ITEM NO. |
d2 |
DIMENSIONmm(inch) |
Q`TY
BAG |
mm2
(A.W.G.) |
mm(inch) |
USA |
W |
F |
L |
E |
D |
d1 |
T |
|
4-6
(12-10) |
SNBL5-4 |
4.3(.169) |
#8 |
9.0(.354) |
7.0(.276) |
18.5(.728) |
6.0(.236) |
5.6(.220) |
3.4(.134) |
1.0(.039) |
1000 |
| SNB5-5 |
5.3(.209) |
#10 |
1000 |
| SNBS5-6 |
6.4(.252) |
1/4" |
1000 |
| SNBL5-6 |
6.4(.252) |
1/4" |
12.0(.472) |
12.0(.472) |
24.5(.965) |
1000 |
| SNB5-8 |
8.4(.331) |
5/16" |
14.0(.551) |
10.5(.413) |
23.5(.925) |
1000 |
|
8
(8) |
SNB8-5 |
5.3(.209) |
#10 |
10.5(.413) |
8.1(.319) |
20.8(.819) |
8.5(.335) |
7.2(.283) |
4.5(.177) |
1.2(.047) |
500 |
| SNB8-6 |
6.4(.252) |
1/4" |
10.8(.425) |
8.6(.339) |
22.5(.886) |
500 |
|
14
(6) |
SNB14-6 |
6.4(.252) |
1/4" |
11.0(.433) |
10.7(.421) |
25.5(1.004) |
10.5(.413) |
9.0(.354) |
5.8(.228) |
1.5(.059) |
500 |
| SNB14-8 |
8.4(.331) |
5/16" |
13.8(.543) |
10.7(.421) |
28.5(1.122) |
500 |
|
|
