短形裸中间端头
NON-INSULATED PARALLEL SPLICE CONNECTORS
Material
Terminal Body: Copper
Plating: Tin
WIRE
RANGE |
ITEM NO. |

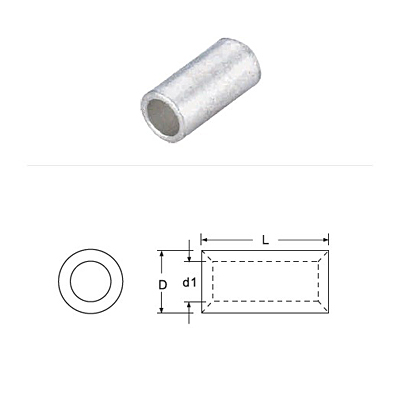

DIMENSIONmm(inch) |
Q`TY
BOX |
mm2
(A.W.G.) |
L |
D |
d1 |
T |
|
0.2-0.5
(26-22) |
PNT0.5 |
5.0(.197) |
2.1(.083) |
1.3(.051) |
0.4(.016) |
1000 |
|
0.5-1.5
(22-16) |
PNT1 |
8.0(.315) |
3.3(.130) |
1.7(.067) |
0.8(.031) |
1000 |
|
1.5-2.5
(16-14) |
PNT2 |
8.0(.315) |
3.9(.154) |
2.3(.091) |
0.8(.031) |
1000 |
|
2.5-4
(14-12) |
PNT3 |
8.5(.335) |
5.0(.197) |
3.0(.118) |
1.0(.039) |
1000 |
|
4-6
(12-10) |
PNT5 |
8.5(.335) |
5.4(.213) |
3.4(.134) |
1.0(.039) |
1000 |
|
8
(8) |
PNT8 |
9.5(.374) |
7.0(.276) |
4.6(.177) |
1.2(.047) |
1000 |
|
14
(6) |
PNT14 |
11.0(.433) |
8.9(.350) |
5.9(.232) |
1.5(.059) |
500 |
|
22
(4) |
PNT22 |
13.5(.531) |
11.3(.445) |
7.8(.307) |
1.75(.069) |
250 |
|
38
(2) |
PNT38 |
16.5(.650) |
13.2(.520) |
9.5(.374) |
1.85(.073) |
200 |
|
60
(1/0) |
PNT60 |
19.0(.748) |
15.3(.602) |
11.4(.449) |
1.95(.077) |
100 |
|
70
(2/0) |
PNT70 |
19.0(.748) |
17.5(.689) |
13.3(.524) |
2.1(.083) |
100 |
|
80
(3/0) |
PNT80 |
19.5(.768) |
19.5(.768) |
14.5(.571) |
2.5(.098) |
50 |
|
100
(4/0) |
PNT100 |
20.0(.787) |
22.1(.870) |
16.4(.646) |
2.85(.112) |
50 |
|
150
(250/300) |
PNT150 |
27.0(1.063) |
26.4(1.039) |
19.5(.768) |
3.45(.136) |
25 |
|
180
(300/350) |
PNT180 |
28.5(1.122) |
28.5(1.122) |
21.0(.827) |
3.75(.148) |
10 |
|
200
(400/500) |
PNT200 |
32.0(1.260) |
32.4(1.276) |
24.0(.945) |
4.20(.165) |
10 |
|
325
(500/600) |
PNT325 |
37.0(1.457) |
37.0(1.457) |
28.0(1.102) |
4.50(.177) |
5 |
|
|
