窥口铜接线端子（DTGA型）-易捷通电子

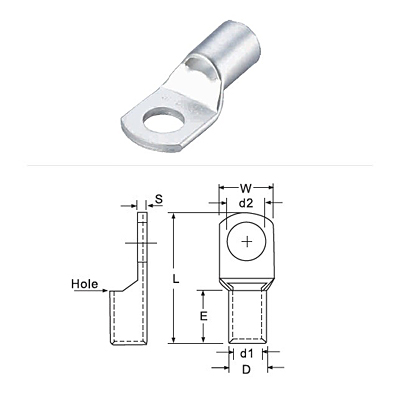

WIRE SPECIFICATION MAX CURRENT	TYPE	BOLT SIZE	DIMENSIONS(mm)					CRIMPING TOOL	PACKING (PCS)
		d2	W	d1	D	L	E
22-16A.W.G. 0.5-1.5mm² 9A	SC1.5-5	5.3	8.0	1.9	3.35	18	6.5	HX-4 Using 0.3-2.5 caliber of tongs	1000
16-14A.G.W. 1.5-2.5mm² 27A	SC2.5-4	4.3	8.0	2.6	4.0	18.0	7.0	HX-4 Using 0.3-2.5caliber of tongs	1000
									1000
	SC2.5-5	5.3				20.0			1000
14-12A.W.G. 2.5-4mm² 37A	SC4-5	5.3	10.0	3.2	4.8	20.5	7.5	HX-4 Using4-6 caliber of tongs	1000
									1000
	SC4-6	6.4				22.0
12-10A.W.G. 4-6mm² 48A	SC6-5	5.3	10.0	3.7	5.3	24.0	8.0	HX-10 Using 4-6 caliber of tongs	500
									500
	SC6-6	6.4
8A.W.G. 10mm² 90A	SC10-6	6.4	12.6	4.5	6.3	24.0	9.0	HX-10 Using 10 caliber of tongs	500
	SC10-8	8.4				25.0			500
6A.W.G. 16mm² 125A	SC16-6	6.4	12.6	5.7	7.5	27.5	11.0	HX-16 Using 16 caliber of tons	250
	SC16-8	8.4				29.5			250
4A.W.G 25mm² 160A	SC25-6	6.5	15.0	7.2	9.0	34.0	13.5	HX-150B Using25 caliber of tongs	200
									200
	SC25-8	8.4							200
2A.W.G. 35mm² 200A	SC35-8	8.4	15.2	8.5	10.5	37.0	14.5	HX-150B Using35 caliber of tongs	200
									200
	SC35-10	10.5				38.0			200
1/0W.G.W. 50mm² 250A	SC50-8	8.4	18.5	9.8	12.5	42.5	17.0	HX-150B Using 50 caliber of tongs	100
									100
	SC50-10	10.5				44.0			100
2/0A.W.G. 70mm² 310A	SC70-10	10.5	21.4	11.5	14.5	50.0	19.5	HX-150B Using 70 caliber of tongs	100
	SC70-12	13.0							100
									100
3/0A.W.G. 95mm² 380A	SC95-10	10.5	25.5	13.7	17.0	57.0	23.4	HX-150B Using 95 caliber of tongs	50
	SC95-12	13.0							50
4/0A.W.G. 120mm² 440A	SC120-12	13 13.0	28.3	15.0	19.0	63.0	26.0	HX-150B Using 120 caliber of tongs	25
	SC120-16	17.0					26.0	HX-150B Using 120 caliber of tongs	25

Tubular lugs terminals
Tlk type

Material
Terminal Body: Copper
Plating: Tin

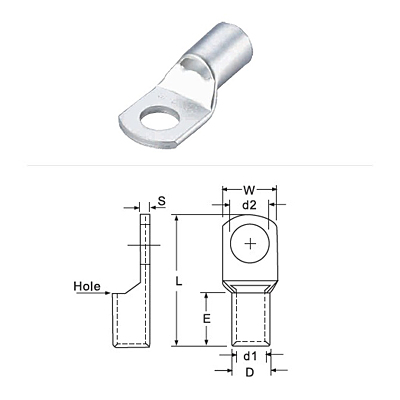

WIRE SPECIFICATION MAX CURRENT	TYPE	BOLT SIZE	DIMENSION(mm)					CRIMPING TOOL	PACKING (PCS)
		d2	W	d1	D	L	E
250/300MCM A.W.G. 150mm2 510A	SC150-12	13	31.0	16.7	21.0	71.0	29.0	HX-150B Using 150 caliber of tongs	25
	SC150-16	17
300/350MCM A.W.G. 185mm2 585A	SC185-16	17	34.2	18.5	23.0	79.0	33.0	HX-245B Using 185 caliber of tongs	10

400/450MCM A.W.G. 240mm2 700A	SC240-16	17	39.0	21.0	26.0	91.0	40.0	HX-245B Using 240 caliber of tongs	10
	SC240-20	21				92.0
500MCM A.W.G. 300mm2 800A	SC300-16	17	44.0	24.0	30.0	102.0	44.0	HX-325B Using 300 caliber of tongs	5
500MCM A.W.G. 300mm2 800A	SC300-20	21	44.0	24.0	30.0	102.0	44.0	HX-325B Using 300 caliber of tongs	5
600/750MCM A.W.G. 400mm2 700A	SC400-16	17	51.0	27.0	34.0	102.0	46.0	HX-325B Using 400 caliber of tongs	5
	SC400-18	19				113.0
	SC400-20	21					50.0
800/1000MCM A.W.G. 500mm2 1100A	SC500-16	17	56.0	30.0	38.0	123.0	50.0		5
	SC500-20	16							5
1000/1250MCM A.W.G. 630mm2	SC630-20	21	63.0	35.0	45.0	135.0	56.0		2
