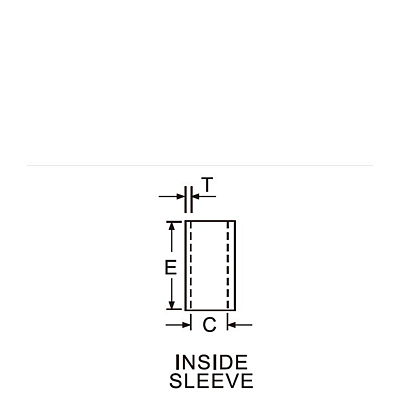

Material：Copper,Tin-plating
WIRE
RANGE |
ITEM NO. |
DIMENSION mm |
FLG |
COLOR |
Q’TY
BOX |
mm2
(A.W.G) |
W |
F |
L |
D |
E |
T |
C |
1.25
(22-16) |

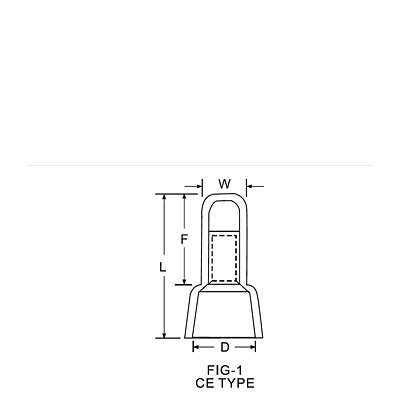

CE 1 |
5.0(.197) |
13.60(.535) |
21.0(.827) |
8.0(.315) |
7.0(.276) |
0.5(.020) |
2.3(.091) |
1 |
Nature |
1000 |
2
(16-14) |
CE 2 |
5.5(.217) |
13.90(.547) |
21.0(.827) |
8.0(.315) |
7.0(.276) |
0.45(.018) |
3.1(.122) |
1 |
1000 |
5.5
(12-10) |
CE 5 |
7.5(.295) |
14.60(.575) |
25.5(1.004) |
10.0(.394) |
7.5(.295) |
0.7(.028) |
4.0(.157) |
1 |
500 |
8
(8) |
CE 8 |
9.4(.370) |
18.0(.709) |
29.8(1.173) |
12.0(.472) |
8.5(.335) |
1.25(.049) |
4.4(.173) |
1 |
250 |
1.25
(22-16) |

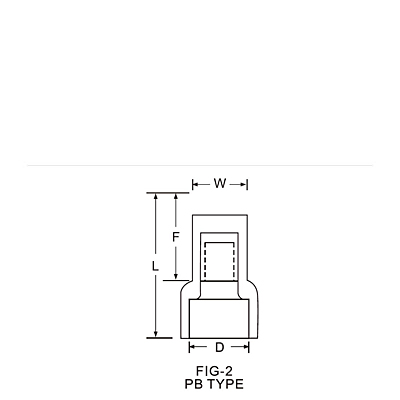

PB 1 |
5.0(.197) |
8.8(.346) |
15.2(.598) |
6.0(.236) |
7.0(.276) |
0.5(.020) |
2.3(.091) |
2 |
1000 |
2
(16-14) |
PB 2 |
5.8(.228) |
8.8(.346) |
15.2(.598) |
6.3(.248) |
7.0(.276) |
0.45(.018) |
3.1(.122) |
2 |
1000 |
5.5
(12-10) |
PB 5 |
7.3(.287) |
8.8(.346) |
17.8(.701) |
9.2(.362) |
7.5(.295) |
0.7(.028) |
4.0(.157) |
2 |
500 |
8
(8) |
PB 8 |
9.4(.370) |
11.8(.465) |
22.0(.866) |
11.8(.465) |
8.0(.315) |
1.25(.049) |
5.0(.197) |
2 |
250 |

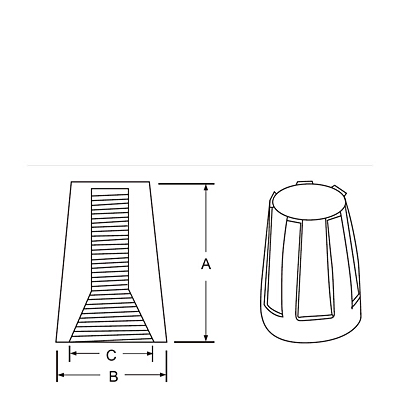

Material：Insulation：Vinyl
| ITEM NO. |
SUITABLE
WIRE
NO.&A.W.G. |
DIMENSION mm |
COLOR |
Q’TY
BOX |
| A |
B |
C |
| S1 |
MIN #24×2
MAX #16×1+#18×2 |
14.5(.570) |
8.6(.339) |
6.5(.256) |
Yellow |
1000 |
| M2 |
MIN #20×3
MAX #16×3 |
17.2(.677) |
10.0(.394) |
7.6(.299) |
1000 |
| L2 |
MIN #220×3
MAX #16×3 |
22.2(.874) |
11.1(.437) |
9.1(.358) |
500 |

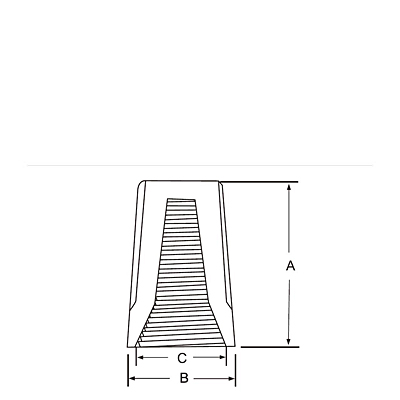

Material：Insulation：Vinyl
| ITEM NO. |
SUITABLE
WIRE
NO.&A.W.G. |
DIMENSION mm |
COLOR |
Q’TY
BOX |
| A |
B |
C |
| WN1 |
MIN #20×1+22×1
MAX #16×2 |
15.2(.598) |
8.6(.339) |
6.7(.264) |
Grey |
1000 |
| WN2 |
MIN #20×3
MAX #16×3 |
17.6(.693) |
9.8(.386) |
7.4(.291) |
Blue |
1000 |
| WN3 |
MIN #20×3
MAX #16×3+#18×1 |
22.0(.886) |
12.0(.472) |
9.9(.390) |
Orange |
500 |
| WN4 |
MIN #14×1+#18×1
MAX #14×4+#18×1 |
24.5(.965) |
14.0(.551) |
11.0(.433) |
Yellow |
500 |
| WN6 |
MIN #14×2
MAX #10×2+#12×2 |
27.4(1.079) |
16.8(.661) |
12.7(.500) |
Red |
250 |
| WN8 |
MIN #12×3
MAX #10×4 |
32.2(1.286) |
18.3(.720) |
12.8(.504) |
Grey |
200 |

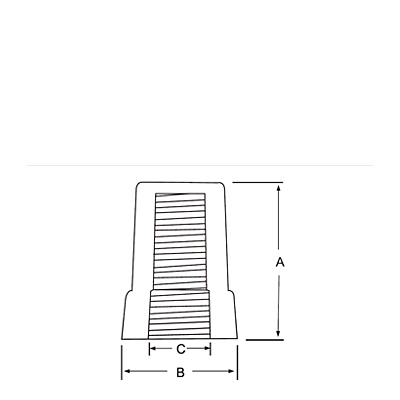

Material：Insulation：Vinyl
| ITEM NO. |
SUITABLE
WIRE
NO.&A.W.G. |
DIMENSION mm |
COLOR |
Q’TY
BOX |
| A |
B |
C |
| Y11 |
MIN #18×2
MAX #12×3 |
25.8(1.016) |
17.5(.689) |
8.5(.335) |
Yellow |
1000 |
| Y12 |
MIN #14×2
MAX #10×4 |
31.8(1.252) |
23.8(.937) |
11.0(.433) |
Red |
500 |
| Y13 |
MIN #12×3
MAX #10×4 |
33.2(1.307) |
27.0(1.063) |
14.0(.551) |
Grey |
500 |
| Y14 |
MIN #12×3
MAX #6×1+#8×2 |
39.6(1.560) |
30.5(1.20) |
17.5(.689) |
Blue |
250 |
|
|
