You are here : Products - INSULATED SPLICE CONNECTOR - VINYL-INSULATED DOUBLE CRIMP TERMINAL AND DISCONNECTOR
FDD
VINYL INSULATED DOUBLE CRIMP FEMALE DISCONNECTORS

Share |

VINYL INSULATED DOUBLE CRIMP FEMALE DISCONNECTORS

Material
Insulation:Vinyl
Terminal Body: Brass
Metallic Sleeve:Copper
Plating: Tin

Data Source : 1

WIRE
RANGE
ITEM NO. NEMA TAB DIMENSION mm(inch) COLOR Q`TY
BOX
mm2
(A.W.G.)
Thickness×Width
mm · inch

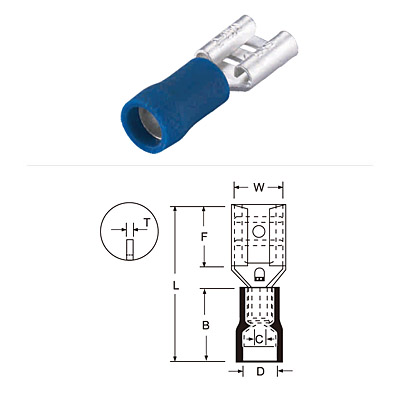

W F L B D C T
0.5-1.5
(22-16)
FDD1-110(5) 0.5×2.8 .020×.110 3.2(.126) 6.5(.256) 19.0(.748) 10.5(.413) 3.8(.150) 1.7(.067) 0.3(.012) Red 1000
FDD1-110(8) 0.8×2.8 .032×.110 3.2(.126)
FDD1-187(5) 0.5×4.75 .020×.187 5.0(.197) 6.4(.252) 19.4(.764) 0.35(.014)
FDD1-187(8) 0.8×4.75 .032×.187 5.0(.197)
FDD1-205(5) 0.5×5.2 .020×.205 5.7(.224) 5.8(.228) 19.3(.760)
FDD1-205(8) 0.8×5.2 .032×.205 5.7(.224)
FDD1-250 0.8×6.35 .032×.250 6.6(.260) 7.5(.295) 20.8(.819) 0.4(.016)
FDD1-312 0.8×8.0 .032×.312 8.2(.323) 10.0(.394) 24.5(.965)
1.5-2.5
(16-14)
FDD2-110(5) 0.5×2.8 .020×.110 3.2(.126) 6.5(.256) 19.0(.748) 10.5(.413) 4.7(.185) 2.3(.091) 0.3(.012) Blue 1000
FDD2-110(8) 0.8×2.8 .032×.110 3.2(.126)
FDD2-187(5) 0.5×4.75 .020×.187 5.0(.197) 6.4(.252) 19.4(.764) 0.35(.014)
FDD2-187(8) 0.8×4.75 .032×.187 5.0(.197)
FDD2-205(5) 0.5×5.2 .020×.205 5.7(.224) 5.8(.228) 19.3(.760)
FDD2-205(8) 0.8×5.2 .032×.205 5.7(.224)
FDD2-250 0.8×6.35 .032×.250 6.6(.260) 7.5(.295) 20.8(.819) 0.4(.016)
FDD2-312 0.8×8.0 .032×.312 8.2(.323) 10.0(.394) 24.5(.965)
FDD2-375 1.2×9.4 .047×.375 10.0(.394)

12.0(.472)

26.1(1.028) 0.5(.020)
4-6
(12-10)
FDD5-110(5) 0.5×2.8 .020×.110 3.2(.126) 6.5(.256) 22.0(.866) 13.0(.512) 6.2(.244) 3.4(.134) 0.35(.014) Yellow 500
FDD5-110(8) 0.8×2.8 .032×.110 3.2(.126) 6.5(.256)
FDD5-187(5) 0.5×4.75 .020×.187 5.0(.197) 6.5(.256) 22.0(.866)
FDD5-187(8) 0.8×4.75 .032×.187 5.0(.197) 6.5(.256)
FDD5-250 0.8×6.35 .032×.250 6.6(.260) 7.5(.295) 23.3(.917)
FDD5-312 0.8×8.0 .032×.312 8.2(.323) 10.0(.394) 27.0(1.063) 0.4(.016)
FDD5-375 1.2×9.4 .047×.375 10.0(.394) 12.0(.472) 28.6(1.126) 0.5(.020)
