PBDD
VINYL INUSLATED DOUBLE CRIMP PIGGBACK DISCONNECTORS

Share |

VINYL  INUSLATED  DOUBLE CRIMP PIGGBACK DISCONNECTORS

Material
Insulation:Vinyl
Terminal Body: Brass
Metallic Sleeve:Copper
Plating: Tin

Data Source : 1
WIRE
RANGE
ITEM NO. NEMA TAB DIMENSION mm(inch) COLOR Q`TY
BOX
mm2
(A.W.G.)
Thickness×Width
mm · inch

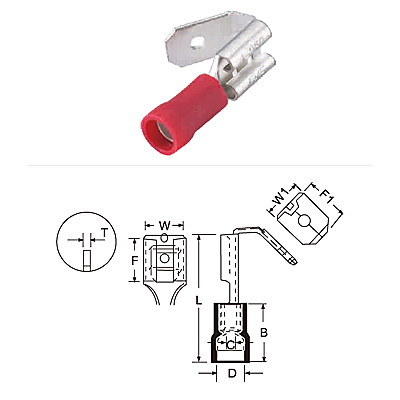

W W1 F F1 L B D C T
0.5-1.5
(22-16)
PBDD1-250 0.8×6.35 .032×.250 6.6(.260) 6.35(.250) 8.0(.315) 8.2(.323) 22.5(.886) 10.5(.413) 3.8(.150) 1.7(.067) 0.4(.016) Red 1000
1.5-2.5
(16-14)
PBDD2-250 0.8×6.35 .032×.250 6.6(.260) 6.35(.250) 8.0(.315) 8.2(.323) 22.5(.886) 10.5(.413) 4.7(.185) 2.3(.091) 0.4(.016) Blue 1000
4-6
(12-10)
PBDD5-250 0.8×6.35 .032×.250 6.6(.260) 6.35(.250) 8.0(.315) 8.2(.323) 24.0(.945) 13.0(.512) 6.2(.244) 3.4(.134) 0.4(.016) Yellow 500
