You are here : Products - INSULATED SPLICE CONNECTOR - VINYL-INSULATED DOUBLE CRIMP TERMINAL AND DISCONNECTOR
FRD
VINYL INSULATED DOUBLE CRIMP BULLET FEMALE DISCONNECTORS

Share |

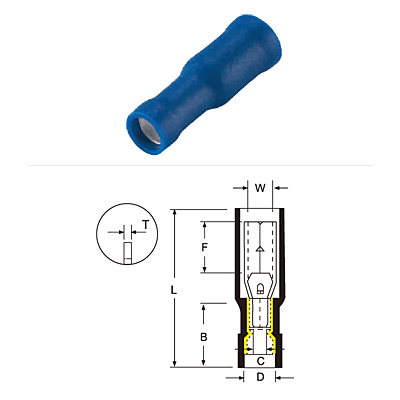

VINYL INSULATED DOUBLE CRIMP BULLET FEMALE DISCONNECTORS

Material
Insulation:Vinyl
Terminal Body: Brass
Metallic Sleeve:Copper
Plating: Tin

Data Source : 1
WIRE
RANGE
ITEM NO. DIMENSION mm(inch) COLOR Q`TY
BOX
mm2
(A.W.G.)
W F L B D C T
0.5-1.5
(22-16)
FRD1-156 3.9(.153) 7.0(.276) 23.3(.917) 10.5(.413) 3.8(.150) 1.7(.067) 0.4(.016) Red 1000
1.5-2.5
(16-14)
FRD2-156 3.9(.153) 7.0(.276) 23.3(.917) 10.5(.413) 4.7(.185) 2.3(.091) 0.4(.016) Blue 1000
FRD2-195 4.9(.193) 7.0(.276)
4-6
(12-10)
FRD5-195 4.9(.193) 7.0(.276) 25.1(.988) 12.5(.492) 6.2(.244) 3.4(.134) 0.45(.018) Yellow 500
