NYLON INSULATED DOUBLE CRIMP LOCKING SPADE TERMINALS

Share |

NYLON INSULATED DOUBLE CRIMP LOCKING SPADE TERMINALS

Material
Insulation:Nylon
Terminal Body:Copper
Metallic Sleeve:Copper
Plating:Tin

Data Source : 1

WIRE

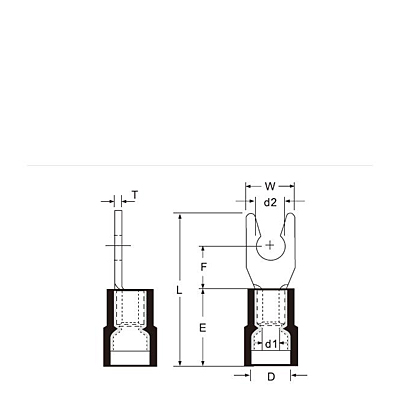

RANGE		 ITEM NO. d2 DIMENSION mm(inch) COLOR Q’TY
BOX
mm2
(A.W.G)		 mm(inch) USA W F L E D d1 T
0.5~1.5
(22~16)		 LSNYD1-3.7 3.7(.146) #6 6.4(.252) 6.5(.256) 22.0(.866) 11.0(.433) 4.5(.177) 1.7(.067) 0.75(.030) Red 1000
LSNYDS1-4 4.3(.169) #8 7.2(.283) 1000
LSNYDL1-4 4.3(.169) #8 8.1(.319) 1000
LSNYDS1-5 5.3(.209) #10 8.1(.319) 1000
LSNYDL1-5 5.3(.209) #10 9.5(.374) 1000
1.5~2.5
(16~14)		 LSNYD2-3.7 3.7(.146) #6 6.0(.236) 6.5(.256) 22.0(.866) 11.0(.433) 5.2(.205) 2.3(.091) 0.8(.031) Blue 1000
LSNYD2-4 4.3(.169) #8 7.2(.283) 1000
LSNYDL2-4 4.3(.169) #8 8.1(.319) 1000
LSNYDS2-5 5.3(.209) #10 8.1(.319) 1000
LSNYDL2-5 5.3(.209) #10 9.3(.366) 1000
4~6
(12~10)		 LSNYD5-3.7 3.7(.146) #6 8.3(.327) 7.0(.276) 25.2(.992) 13.0(.512) 7.0(.276) 3.4(.134) 1.0(.039) Yellow 500
LSNYD5-4 4.3(.169) #8 8.3(.327) 500
LSNYD5-4 5.3(.209) #10 9.0(.354) 500
LSNYD5-4 6.4(.252) 1/4’ 12.0(.472) 12.0(.472) 31.5(1.240) 500
