NYLON INSULATED DOUBLE CRIMP HOOK TERMINALS-CKS

NYLON INSULATED DOUBLE CRIMP HOOK TERMINALS

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

NYLON INSULATED DOUBLE CRIMP HOOK TERMINALS

Material
Insulation:Nylon
Terminal Body:Copper
Metallic Sleeve:Copper
Plating:Tin

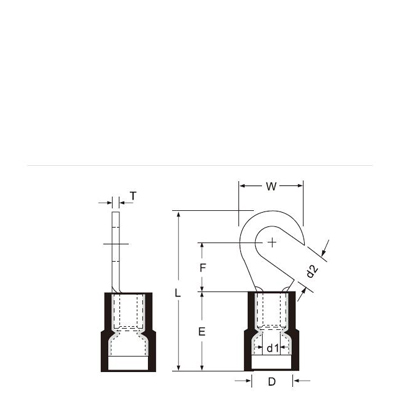

WIRE RANGE	ITEM NO.	d2		DIMENSION mm(inch)							COLOR	Q’TY BOX
mm² (A.W.G)	ITEM NO.	mm(inch)	USA	W	F	L	E	D	d1	T	COLOR	Q’TY BOX
0.5~1.5 (22~16)	HNYD1-3.7	3.7(.146)	#6	8.0(.315)	7.0(.276)	21.8(.858)	11.0(.433)	4.5(.177)	1.7(.067)	0.75(.030)	Red	1000
	HNYD1-4	4.3(.169)	#8									1000
	HNYD1-5	5.3(.209)	#10									1000
	HNYD1-6	6.4(.252)	1/4"	11.6(.457)	11.0(.433)	27.8(1.094)						1000
1.5~2.5 (16~14)	HNYD2-3.7	3.7(.146)	#6	8.5(.335)	7.4(.291)	22.8(.898)	11.0(.433)	5.2(.205)	2.3(.091)	0.8(.031)	Blue	1000
	HNYD2-4	4.3(.169)	#8	8.5(.335)	7.4(.291)							1000
	HNYD2-5	5.3(.209)	#10	9.5(.374)	7.3(.287)							1000
	HNYD2-6	6.4(.252)	1/4"	12.0(.472)	11.0(.433)	27.8(1.094)						1000
4~6 (12~10)	HNYD5-3.7	3.7(.146)	#6	7.2(.283)	6.1(.240)	22.7(.894)	13.0(.512)	7.0(.276)	3.4(.134)	1.0(.039)	Yellow	500
	HNYD5-4	4.3(.169)	#8	9.5(374)	9.5(374)	26.8(1.055)						500
	HNYD5-5	5.3(.209)	#10	9.5(374)	9.5(374)	26.8(1.055)						500
	HNYD5-6	6.4(.252)	1/4"	12.0(.472)	10.3(.406)	29.5(1.164)						500
	HNYD5-8	8.4(.331)	5/16"	15.0(.591)	13.5(.531)	34.0(1.139)						500
