QUICK SPLICE CONNECTORS

Product Overview Barrel Types

Terminals Type Wire Range Stud Size

Share |

Data Source : 1 2 3

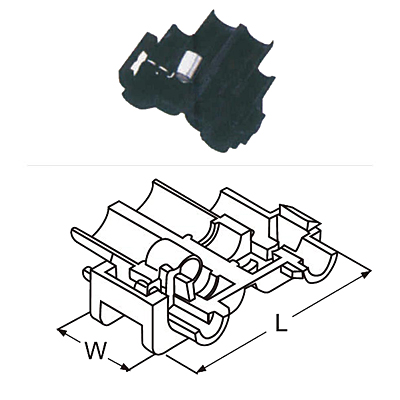

Material
Insulation：P.P.
Terminal Body：Brass
Plating：Tin

WIRE RANGE	ITEM NO.	W mm(inch)	L mm(inch)	COLOR	FLGURE	Q’TY BOX	Q’TY BOX
mm² (A.W.G)	ITEM NO.	W mm(inch)	L mm(inch)	COLOR	FLGURE	Q’TY BOX	Q’TY BOX

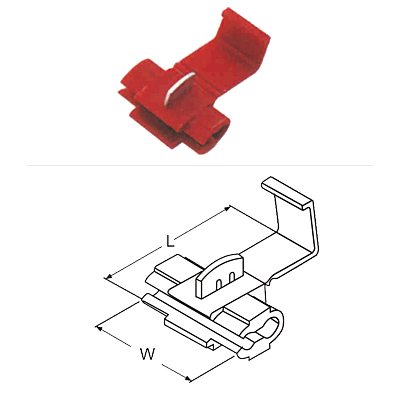

0.5-1.0 (22-18)	878100	20.0(.787)	27.0(1.063)	Red		500

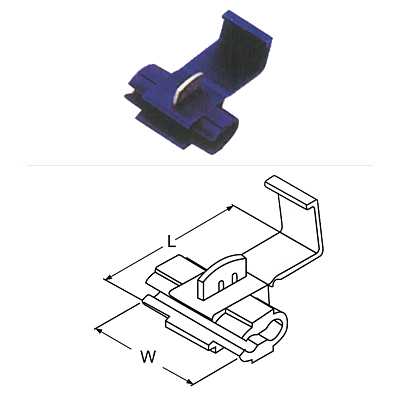

0.75-2.5 (18-14)	878101	20.0(.787)	27.0(1.063)	Blue		500

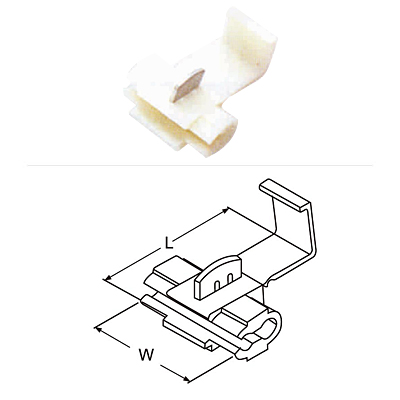

0.75-2.5 (18-14)	878101W	20.0(.787)	27.0(1.063)	White		500

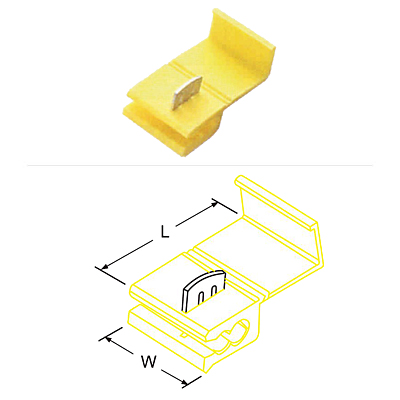

4-6 (12-10)	878201	20.5(.807)	34.5(1.358)	Yellow		200

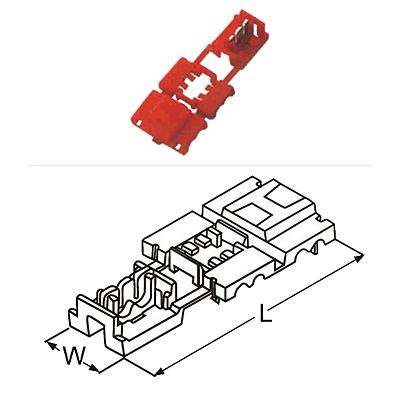

Material
Insulation：Nylon
Terminal Body：Brass
Plating：Tin

WIRE RANGE	ITEM NO.	W mm(inch)	L mm(inch)	COLOR	FLGURE	Q’TY BOX	Q’TY BOX
mm² (A.W.G)	ITEM NO.	W mm(inch)	L mm(inch)	COLOR	FLGURE	Q’TY BOX	Q’TY BOX
0.5-0.75 (22-18)	878006	9.8(.386)	37.0(1.457)	Red		500

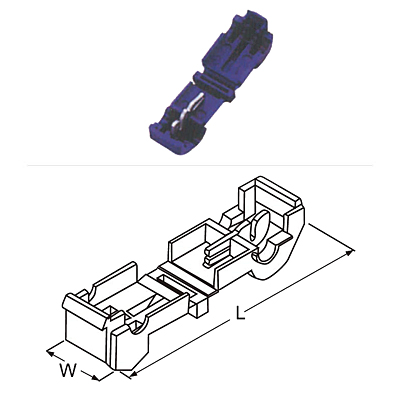

0.75-2.5 (18-14)	878106	9.8(.386)	37.0(1.457)	Blue		500
4-6 (12-10)	878206	9.8(.386)	37.0(1.457)	Yellow		500

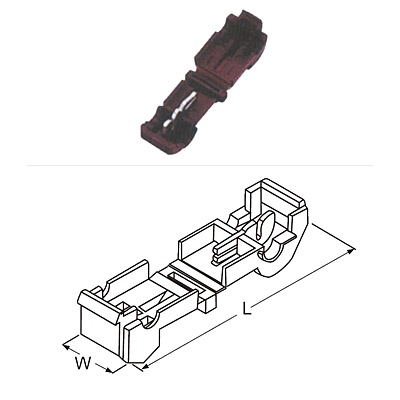

Material
Insulation：P.P.
Terminal Body：Brass
Plating：Tin

WIRE RANGE	ITEM NO.	W mm(inch)	L mm(inch)	MATERIAL	COLOR	FLGURE	Q’TY BOX	Q’TY BOX
mm² (A.W.G)	ITEM NO.	W mm(inch)	L mm(inch)	MATERIAL	COLOR	FLGURE	Q’TY BOX	Q’TY BOX
1.5-2.5 (16-14)	878104	20.0(.787)	49.0 (1.929)	P.P.	Red		250

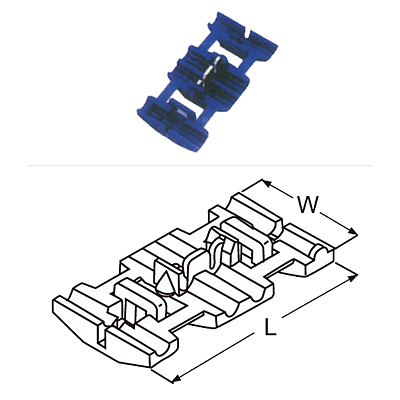

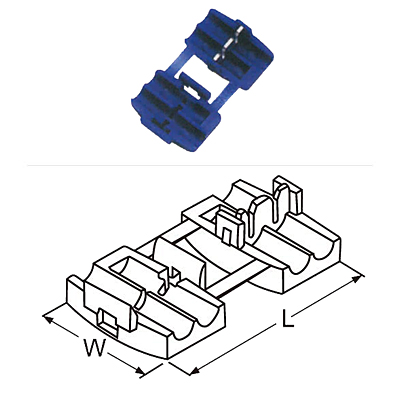

0.75-2.5 (18-14)	878107	17.5(.689)	31.0(1.220)	P.P.	Blue		500
0.75-2.5 (18-14)	878109	28.0(1.103)	31.0(1.220)	P.P.	Blue		250

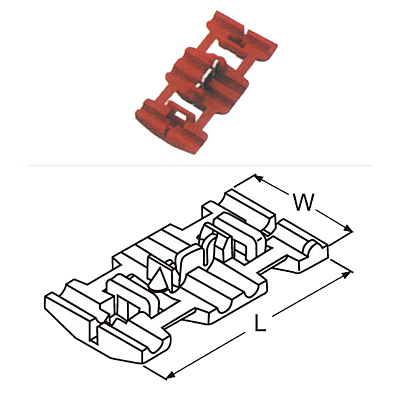

0.5-0.75 (22-18)	878008	35.0(1.378)	34.0(1.339)	Nylon	Red		250
0.75-2.5 (18-14)	878108	35.091.378)	34.0(1.339)	Nylon	Blue		250
